| Сountry of origin | Germany |
|---|---|
| Brand | SpanSet |
| Purpose | Sling Components |
| Safety factor | 4:1 |
| Norms | DIN EN 1677 |

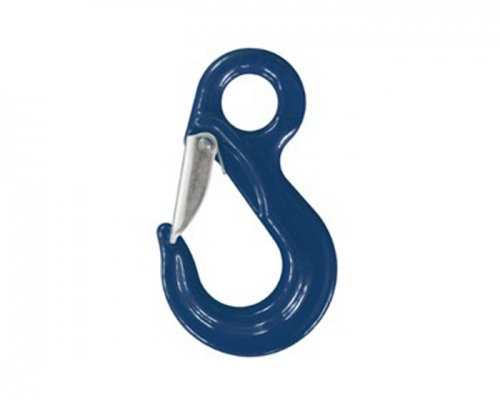

Particularly robust: forged fittings protect the round sling from wear thanks to an intelligent design.

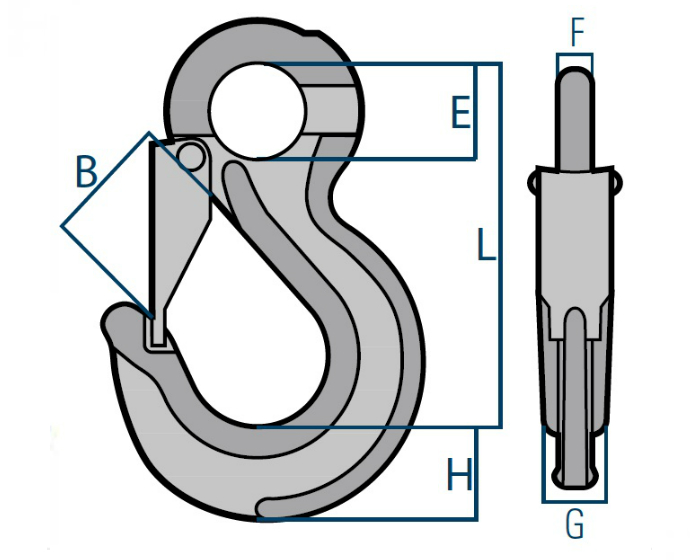

| Model |
Capacity [kg] |
B [mm] |
E [mm] |
F [mm] |
G [mm] |
H [mm] |
L [mm] |
Weight [kg] |
Art.№ |
|---|---|---|---|---|---|---|---|---|---|
| LS 1,5 | 1.500 | 24 | 22 | 10 | 17 | 20 | 94 | 0,40 | D000893 |
| LS 2,5 | 2.500 | 26 | 27 | 12 | 17 | 23 | 108 | 0,60 | D016982 |
| LS 4,0 | 4.000 | 35 | 34 | 14 | 23 | 30 | 134 | 1,10 | D016983 |
| LS 6,7 | 6.700 | 42 | 43 | 18 | 28 | 38 | 166 | 2,10 | D001085 |
| LS 10,0 | 10.000 | 51 | 56 | 22 | 36 | 47 | 203 |
4,10 |
D016978 |
| LS 16,0 | 16.000 | 61 | 61 | 26 | 42 | 60 | 229 | 6,50 | D001103 |
| LS 20,0 | 20.000 | 73 | 64 | 31 | 43 | 67 | 267 | 8,70 | D006142 |
| LS 27,0 | 27.000 | 81 | 66 | 32 | 51 | 75 | 301 | 13,20 | D015801 |
| LS 31,5 | 31.500 | 93 | 76 | 38 | 61 | 80 | 333 | 18,90 | D009638 |
